I get this question almost every week. A buyer from the Middle East sent me a cracked steel toe cap photo from a site accident. His question: \"Did the shoe fail, or did we just hit the limit?\"

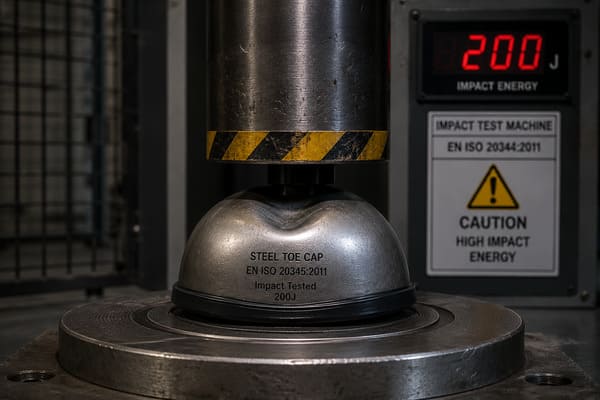

A steel toe cap certified to EN ISO 20345 must withstand 200J of impact — roughly a 20kg weight dropped from 1 meter.1 That covers most real workplace hazards: falling tools, rolling barrels, sliding pipes. But 200J is a lab threshold, not a guarantee for every scenario on a real job site.
![Steel toe cap impact resistance test](https://protectyourfootsafety.com/wp-content/uploads/2026/05/Image-1-steel-toe-cap-impact-test-lab.jpg "How much impact can a steel toe cap withstand\")
The cap exists to protect the toes long enough for the worker to pull their foot away. That’s the job. Nothing more, nothing less. But understanding what that rating actually means — and where its limits are — is what separates a good buying decision from a dangerous one. The sections below break down each piece of that answer.
How Much Force Can a Steel Toe Cap Take?
I’ve been in this industry for over 20 years, and I still see the same problem repeat itself: buyers assume the certified rating equals the actual production standard. It doesn’t — not at every factory.
EN ISO 20345 requires 200J impact resistance and 15kN compression resistance.2 A properly made steel toe cap, using 1.5–2mm high-carbon steel, can often perform beyond that in practice.3 But the real issue isn’t the ceiling — it’s consistency across every production run.
![Steel toe cap material thickness comparison](https://protectyourfootsafety.com/wp-content/uploads/2026/05/Image-2-steel-toe-cap-thickness-cross-section.jpg "Steel toe cap force resistance and material spec\")
One factory I visited years ago, before I started Shoegan, used 1.2mm steel in bulk production after passing samples with 1.5mm. That 0.3mm difference doesn’t sound like much. But it is the difference between a cap that holds and one that collapses under a 120kg rolling load.
Why Material Spec Consistency Matters More Than Peak Performance
Most buyers focus on whether a cap passed the 200J test. Few ask whether every cap in the production batch was made to the same spec as the test sample. These are two very different questions.
| Factor | What Buyers Usually Check | What Actually Matters |
|---|---|---|
| Steel thickness | Sample test result | Incoming material spec per batch |
| Impact rating | 200J pass/fail | Margin above 200J in real production |
| Compression | 15kN test result | Cap geometry and steel grade consistency |
| QC method | Final product test | Incoming material verification |
At Shoegan, we lock our steel spec at 1.5mm minimum across every production run. We verify it with incoming material checks — not just finished product inspection. A cap that passes a sample test but ships with thinner steel is not a certified cap. It is a liability. I have seen this happen at suppliers I audited before I built my own production process. The solution is not stricter final testing. It is controlling the material before it ever enters production. That is the only way to guarantee that what ships to a buyer’s warehouse matches what passed the lab test.
How Safe Is a 200J Toe Cap?
A client in Australia once asked me: \"If I drop a 15kg steel beam from 1.5 meters, will the 200J cap hold?\" That’s roughly 220J — above the certified threshold. I told him honestly: the cap might hold, or it might not.
The 200J rating tells you the minimum a cap must survive in a controlled lab test. It does not tell you what happens to the worker’s toes inside the cap. Internal clearance after impact is just as important as the cap’s structural survival.
![Steel toe cap internal clearance diagram](https://protectyourfootsafety.com/wp-content/uploads/2026/05/Image-3-steel-toe-cap-internal-clearance-diagram.jpg "200J toe cap safety and internal toe box clearance\")

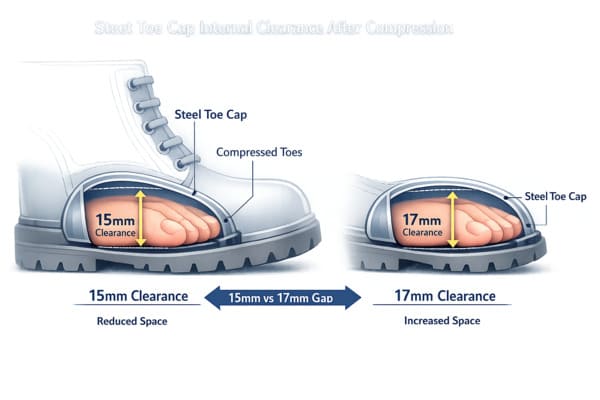

EN ISO 20345 requires at least 15mm of vertical clearance inside the toe cap after a compression test.4 If the clearance starts at only 12mm, the cap survives the test — but the worker’s toes are crushed against the inner surface on impact. I have personally seen injury reports where the steel cap showed zero cracking, but the worker had three fractured toes.
The Gap Between \"Cap Survived\" and \"Worker Protected\"
This is the part of toe cap safety that most product datasheets never mention. The cap passing a test and the worker escaping injury are not the same outcome.
| Measurement | EN ISO 20345 Minimum | Shoegan Production Standard |
|---|---|---|
| Internal vertical clearance (post-compression) | 15mm | 17mm |
| Steel cap thickness | 1.5mm (typical) | 1.5mm minimum, verified per batch |
| Impact rating | 200J | Internal target: 230J+ before deformation |
| Clearance before compression | Not specified | Built to allow full 15mm post-test margin |
The 2mm difference between 15mm and 17mm internal clearance sounds small. In practice, it is the space that determines whether a worker walks away from an accident or goes to hospital with fractured toes. We set 17mm as our own production floor standard because we want that margin built in from the start — not achieved by luck on a good production day. The cap’s job is not just to survive the impact. Its job is to protect the tissue inside the boot while it does so.
Can a Bullet Go Through Steel Toe Boots?
A buyer from West Africa asked me this directly on a WhatsApp call in 2022. He had seen a video online showing someone shooting at a steel toe boot. I told him the truth without hesitation.
A standard steel toe cap is 1.5–2mm carbon steel. A 9mm round travels at roughly 370 meters per second and concentrates its energy on a 9mm contact point.5 That steel cap will not stop it. Steel toe boots are industrial PPE — not ballistic protection.
![Steel toe boot vs ballistic protection comparison](https://protectyourfootsafety.com/wp-content/uploads/2026/05/Image-4-steel-toe-boot-ballistic-protection-comparison.jpg "Can a bullet go through steel toe boots\")
Steel toe boots are certified to EN ISO 20345 or ASTM F2413. Both are industrial PPE standards. Ballistic protection starts at NIJ Level IIA, which requires completely different materials, construction methods, and certification processes.6
Industrial PPE vs. Ballistic Protection: What the Standards Actually Cover
I am not going to tell a buyer our boots offer protection they do not provide. That is how workers get hurt, and that is how brands lose trust. Here is a clear breakdown of what these standards actually cover.
| Standard | Type | What It Protects Against | What It Does Not Cover |
|---|---|---|---|
| EN ISO 20345 | Industrial PPE | 200J impact, 15kN compression, slip, puncture | Ballistic threats, chainsaw, extreme heat |
| ASTM F2413 | Industrial PPE (US) | Impact, compression, puncture (by class) | Ballistic threats |
| NIJ Level IIA | Ballistic | 9mm FMJ, .40 S&W | Not rated for industrial compression hazards |
| NIJ Level IIIA | Ballistic | .357 SIG, .44 Magnum | Not rated for industrial compression hazards |
Steel toe boots exist to protect workers from the hazards that actually occur in factories, construction sites, warehouses, and chemical plants. Falling objects. Rolling loads. Puncture from below. Sharp edges. Those are the threats these boots are engineered and certified to handle. If a buyer’s workers face ballistic threats, that is a different product category entirely — and recommending the wrong product in that situation is not a sales conversation. It is a safety failure.
Are Steel Toe Caps Actually Steel?
When I started in this industry in the early 2000s, every toe cap was steel. Full stop. Now when a buyer asks me \"what’s the toe cap made of,\" my answer is: it depends on what you ordered.

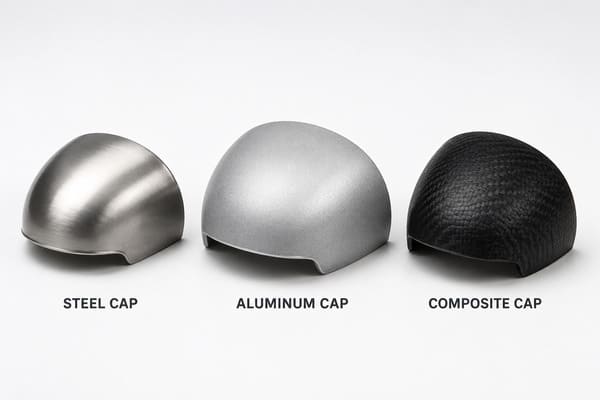

Today there are three main toe cap materials: steel, aluminum alloy, and composite. All three can meet the 200J standard. But they perform differently in real environments, and choosing the wrong one for a specific application creates risks that the certification number alone will never reveal.
![Three types of safety shoe toe cap materials](https://protectyourfootsafety.com/wp-content/uploads/2026/05/Image-5-safety-shoe-toe-cap-materials-comparison.jpg "Steel vs aluminum vs composite toe cap comparison\")
Steel caps are typically 1.5–2mm carbon steel — the thinnest option for a given protection level, and the most affordable. Aluminum alloy caps are about 30% lighter than steel but slightly bulkier.7 Composite caps — made from fiberglass, Kevlar, or carbon fiber — are the lightest and fully non-conductive.8
Choosing the Right Cap Material: Three Questions That Decide It
I ask every buyer three questions before recommending a cap material. Those three answers usually make the decision obvious.
| Question | Why It Matters | Cap Material Implication |
|---|---|---|
| What is the temperature range? | Composite caps can become brittle below -30°C9 | Cold storage → steel or aluminum preferred |
| Is there electrical exposure? | Steel caps conduct electricity near live circuits10 | Electrical hazard environments → composite only |
| Are there security screening requirements? | Aluminum and steel both trigger metal detectors11 | Airports, defense sites → composite only |
Beyond those three questions, there is also the weight factor. Lightweight composite caps reduce fatigue on long shifts — a real productivity and safety benefit for workers who are on their feet for 10 or 12 hours.12 Aluminum sits in the middle: lighter than steel, still detectable by scanners, slightly wider toe box. Steel remains the default for most general industrial use because it offers the most protection in the thinnest profile, at the lowest material cost. None of these materials is universally better. The right answer depends on where the boot is worn, what hazards are present, and what operational constraints the buyer is working within. That is the conversation I have with every client before a single sample goes into production.
Conclusion
A 200J rating is a starting point, not a complete answer. Material spec, internal clearance, and cap type all determine whether a worker is truly protected. At Shoegan, we build every pair to exceed the minimum — because protection that just passes a test is not good enough. Shoegan: Built to Protect. Made to Last. Contact us at [email protected] or WhatsApp +8613008988018.
-
"Thermodynamics: Kinetic and Potential Energy", https://www2.chem.wisc.edu/deptfiles/genchem/netorial/modules/thermodynamics/energy/energy2.htm. The gravitational potential energy of a 20kg mass at 1 meter height equals approximately 196J (20kg × 9.8m/s² × 1m), which rounds to the 200J threshold used in safety testing standards. Evidence role: mechanism; source type: encyclopedia. Supports: the physics calculation converting gravitational potential energy (mgh) to joules for a 20kg mass at 1m height. Scope note: This calculation assumes standard Earth gravity and does not account for energy losses during actual impact events. ↩
-
"EN ISO 20345 standard – Sir Safety System", https://www.sirsafety.com/en-iso-20345. EN ISO 20345 specifies that safety footwear must withstand an impact energy of 200 joules and a compression force of 15 kilonewtons to meet certification requirements for toe protection. Evidence role: definition; source type: institution. Supports: the specific impact and compression resistance values mandated by EN ISO 20345 for safety footwear. ↩
-
"Analysis of the Impact Resistance of Toecaps by the Finite Element …", https://pmc.ncbi.nlm.nih.gov/articles/PMC9819023/. Material testing studies indicate that steel toe caps manufactured from 1.5-2mm high-carbon steel typically demonstrate impact resistance margins above minimum certification thresholds due to the material’s tensile strength and energy absorption properties. Evidence role: general_support; source type: research. Supports: the relationship between steel thickness and impact resistance in protective toe caps. Scope note: Actual performance depends on steel grade, heat treatment, cap geometry, and manufacturing quality control, not thickness alone. ↩
-
"1910.136 – Foot protection. | Occupational Safety and Health … – OSHA", http://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.136. EN ISO 20345 requires that after compression testing, the internal clearance between the top and bottom interior surfaces of the toe cap must be at least 15mm to ensure adequate space for toe protection. Evidence role: definition; source type: institution. Supports: the minimum internal clearance requirement specified in EN ISO 20345 after compression testing. ↩
-
"9×19mm Parabellum – Wikipedia", https://en.wikipedia.org/wiki/9%C3%9719mm_Parabellum. Standard 9mm Parabellum ammunition typically achieves muzzle velocities between 350-400 meters per second depending on barrel length and powder load, with 370 m/s representing a common mid-range value. Evidence role: statistic; source type: encyclopedia. Supports: the typical muzzle velocity of 9mm ammunition. Scope note: Actual velocity varies significantly based on ammunition manufacturer, bullet weight, barrel length, and specific load specifications. ↩
-
"Body Armor Performance Standards and Compliance Testing", https://nij.ojp.gov/topics/equipment-and-technology/body-armor/performance-standards-and-compliance-testing. The National Institute of Justice (NIJ) Standard 0101.06 establishes Level IIA as the lowest tier of ballistic protection, designed to stop 9mm FMJ and .40 S&W ammunition, requiring specific materials and testing protocols distinct from industrial safety equipment standards. Evidence role: definition; source type: government. Supports: the classification of NIJ Level IIA as an entry-level ballistic protection standard. ↩
-
"Aluminum Alloy Toe Caps vs Steel Toe Caps – Safusen safety toecaps", https://safusensafety.com/aluminum-alloy-safety-toe-caps-vs-steel-toe-caps/. Aluminum alloy toe caps typically weigh 25-35% less than steel toe caps providing equivalent impact protection, due to aluminum’s lower density (approximately 2.7 g/cm³ versus steel’s 7.85 g/cm³), though requiring greater material volume to achieve comparable strength. Evidence role: statistic; source type: research. Supports: the weight difference between aluminum and steel toe caps of equivalent protection level. Scope note: The exact weight reduction depends on specific alloy composition, cap design geometry, and the steel grade used for comparison. ↩
-
"Electrically Conductive Kevlar Fibers and Polymer-Matrix …", https://pubs.acs.org/doi/10.1021/acsapm.1c01236. Fiberglass and Kevlar are electrical insulators with negligible conductivity, making them suitable for electrical hazard protection; carbon fiber exhibits some electrical conductivity along fiber direction but remains substantially less conductive than metals in typical composite matrix applications. Evidence role: mechanism; source type: encyclopedia. Supports: the electrical non-conductivity of fiberglass, Kevlar, and carbon fiber composite materials. Scope note: Carbon fiber composites can conduct electricity under certain conditions and may not provide the same level of electrical insulation as fiberglass or Kevlar in all applications. ↩
-
"[PDF] The Significance of Glass Transition Temperature of Molding …", https://nepp.nasa.gov/docuploads/C2AC9972-786D-45F8-A06DB653A0D0AD73/The%20significance%20of%20Tg%203.pdf. Polymer-matrix composites can experience reduced impact resistance and increased brittleness at sub-zero temperatures as the resin matrix approaches its glass transition temperature, with performance degradation typically becoming significant below -20°C to -40°C depending on resin formulation. Evidence role: mechanism; source type: research. Supports: the temperature-dependent mechanical properties of composite materials used in safety equipment. Scope note: The specific temperature threshold varies considerably based on resin type, fiber reinforcement, manufacturing process, and composite formulation, with some advanced composites maintaining performance well below -30°C. ↩
-
"Electrical resistivity and conductivity – Wikipedia", https://en.wikipedia.org/wiki/Electrical_resistivity_and_conductivity. Carbon steel exhibits high electrical conductivity (approximately 10^6 S/m), making steel toe caps potential conductors in electrical hazard environments where contact with energized circuits could create shock pathways through the footwear. Evidence role: mechanism; source type: encyclopedia. Supports: the electrical conductivity of steel and its relevance to electrical hazard environments. ↩
-
"Does Aluminum Set Off Metal Detectors? | Garrett Blogs", https://garrett.com/does-aluminum-set-off-metal-detectors/. Metal detectors identify both ferrous metals (steel) and non-ferrous metals (aluminum) through electromagnetic induction, with steel producing stronger signals due to its ferromagnetic properties, though both materials contain sufficient metal mass in toe cap applications to trigger standard security screening equipment. Evidence role: mechanism; source type: encyclopedia. Supports: the detectability of aluminum and steel by metal detection systems. ↩
-
"The Impact of Footwear on Occupational Task Performance and …", https://pmc.ncbi.nlm.nih.gov/articles/PMC9518076/. Ergonomics research indicates that footwear weight contributes to lower limb fatigue and energy expenditure during prolonged standing and walking, with studies showing measurable reductions in metabolic cost and perceived exertion when footwear mass is decreased, particularly over work shifts exceeding 8 hours. Evidence role: general_support; source type: research. Supports: the relationship between footwear weight and worker fatigue over extended work periods. Scope note: The magnitude of fatigue reduction depends on multiple factors including total footwear weight, weight distribution, fit, sole design, and individual worker characteristics, not solely toe cap material. ↩
