What Is the Difference Between a Fiberglass and a Carbon Fiber Toe Cap?

A buyer once sent me a sample request that just said \"composite toe, lightweight.\" I had to call him back. He had no idea fiberglass and carbon fiber were different materials.

Fiberglass and carbon fiber toe caps are both non-metallic safety toe options, but they differ in stiffness, cost, and performance under stress. Carbon fiber is stiffer and roughly 2–3x more expensive to source¹. Fiberglass is more flexible and easier to mold at volume. Both can pass EN ISO 20345 impact tests².

$Fiberglass vs Carbon Fiber Toe Cap Difference\$

This question comes up constantly in our factory. Buyers write \"composite toe\" on their spec sheet and assume that covers everything. It does not. In our production line, the material choice affects tooling, sourcing cost, and the feel of the finished shoe. If you are writing a product spec or placing a bulk order, \"composite\" is not enough. You need to name the material. The rest of this article will explain exactly why that matters — and help you make the right call for your application.

Is Carbon Toe the Same Thing as Steel Toe?

A procurement manager from a UAE construction company once told me: \"We want carbon toe — it sounds stronger than steel.\" I understood why he thought that. But the two materials protect the foot in completely different ways.

Steel and carbon fiber toe caps both meet the 200-joule impact requirement under EN ISO 20345, but they work differently. Steel deforms to absorb impact energy. Carbon fiber disperses the load across its surface³. Steel is roughly 3–4x heavier per cap⁴.

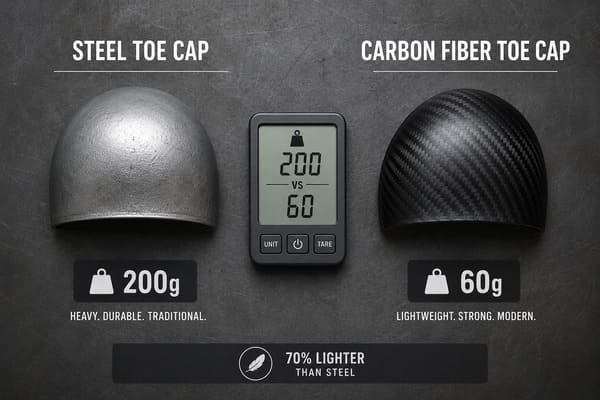

$Steel Toe vs Carbon Fiber Toe Cap\$

That UAE buyer ended up choosing carbon fiber — not because it was stronger, but because his workers were standing for 10-hour shifts. The weight difference changed everything for them. This is a decision I see repeated across industries. The right question is not \"which is stronger\" but \"which is right for this specific work environment.\" Here is a direct comparison to help you think through it.

Steel Toe vs. Carbon Fiber Toe: Side-by-Side

Feature	Steel Toe	Carbon Fiber Toe
Impact resistance	Very high	High (meets same rating)
Weight per cap	Heavy (approx. 80–100g)	Light (approx. 25–35g)
Metal detection	Triggers detectors	Metal-detector safe
Thermal conductivity	High (transfers cold/heat)	Low
Cost	Lower	Higher
Best for	Heavy industry, construction	Long shifts, airports, food processing

Steel is the right call when something genuinely heavy is likely to fall on the foot. Carbon fiber is the right call when weight, metal detection, or thermal comfort is a priority. These are not competing products — they solve different problems. Knowing which problem your buyer actually has is the only way to make the right recommendation.

Is Carbon-Fiber Toe OSHA Approved?

This is one of the most common compliance questions I get from North American buyers. The short answer is: OSHA does not maintain a list of approved materials.

OSHA references ASTM F2413 as the accepted standard for protective footwear in the US⁵. Any toe cap material — including carbon fiber — can be OSHA-compliant if the complete finished shoe meets ASTM F2413 and carries a valid test report for the full assembly⁶.

$Carbon Fiber Toe OSHA ASTM F2413 Compliance\$

In 2022, a client of mine received a shipment from another supplier. The supplier had attached a \"certified carbon toe\" document to the order. The certification covered the toe cap component only — tested in isolation, not as part of the complete shoe. The full shoe had never gone through ASTM F2413 testing. That shipment got flagged during a jobsite safety audit. The client had to pull the shoes from use.

What a Valid Certification Must Cover

What You Receive	Is It Enough?
Toe cap component test report only	No
Certificate image without test report	No
Full shoe ASTM F2413 test report	Yes
Full shoe EN ISO 20345 test report (for EU)	Yes (for EU market)
Both ASTM and EN ISO reports	Yes (for dual-market use)

Always ask for the full test report — not just the certificate image. A certificate without a traceable test report number and a named accredited lab is not reliable documentation. At Shoegan, every shoe we export for the US market carries a complete ASTM F2413 test report for the finished shoe assembly. That is the standard we hold ourselves to, and it is the standard you should require from any supplier.

Are Carbon Toe and Composite Toe the Same?

Carbon toe is one type of composite toe. But composite toe is a broad category — and in practice, it has become more of a marketing label than a technical specification.

\"Composite toe\" includes fiberglass, carbon fiber, Kevlar, and reinforced nylon caps. All are non-metallic. All can meet EN ISO 20345 or ASTM F2413 impact ratings. But the materials differ significantly in stiffness, weight, cost, and long-term durability.

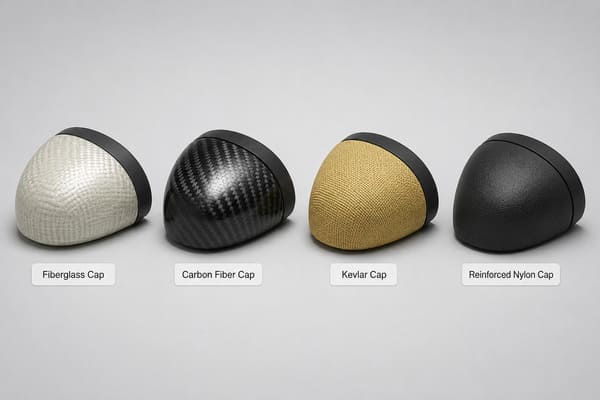

$Composite Toe Cap Types Comparison\$

I have seen factories list fiberglass caps, nylon caps, and carbon fiber caps all under the same \"composite toe\" label — sometimes within the same product catalog. The price difference between a nylon composite cap and a carbon fiber cap can reach 40–60% per pair at volume⁷. If you are ordering 5,000 pairs and you assume \"composite\" means carbon fiber, that is a significant spec mismatch.

Composite Toe Cap Types: What You Need to Know

Material	Stiffness	Weight	Cost Level	Common Use
Fiberglass	Medium	Light	Low–Medium	General industrial
Carbon Fiber	High	Very light	High	Precision, long shifts
Kevlar	Medium	Light	Medium–High	Cut/heat environments⁸
Reinforced Nylon	Low–Medium	Light	Low	Light-duty, cost-sensitive⁹

The practical advice I give every buyer is this: write the exact material in your purchase order. \"Composite toe\" alone will not protect you in a dispute. If you ordered carbon fiber and received fiberglass, the word \"composite\" gives you no ground to stand on. A clear material specification in the PO is the simplest way to avoid this problem entirely.

What’s Better — Carbon Toe, Steel Toe, or Composite Toe?

I have shipped safety shoes to construction sites in Saudi Arabia, food processing plants in the Netherlands, and cold storage facilities in Canada. The answer is different every time.

There is no single best toe cap material. Steel toe is best for heavy impact environments¹⁰. Carbon fiber is best when weight and metal detection matter¹¹. Fiberglass and nylon composite caps are the most cost-effective choice for general industrial use where both protection and budget are priorities.

$Best Safety Toe Cap by Industry and Use Case\$

One factor that almost never appears in product listings — but should — is thermal conductivity. Steel transfers cold and heat directly to the foot. In a -20°C cold storage facility, a steel toe shoe creates a real discomfort problem within the first hour of a shift¹². Carbon fiber and fiberglass do not conduct temperature the same way. That one detail has changed the spec decision for at least three clients I can think of in the past two years.

Toe Cap Selection Guide by Work Environment

Work Environment	Recommended Toe Cap	Key Reason
Construction / Mining	Steel	Maximum impact resistance
Airport ground operations	Carbon Fiber	Metal-detector safe, lightweight
Cold storage (-20°C or below)	Carbon Fiber or Fiberglass	Low thermal conductivity
Food processing	Carbon Fiber or Fiberglass	Metal-detector safe, hygiene-friendly
General manufacturing	Fiberglass or Nylon Composite	Cost-effective, meets standard ratings
Long-shift warehouse work	Carbon Fiber or Lightweight Composite	Reduces fatigue over extended wear

The buyers who get this decision right are the ones who start with the work environment, not the product. What is the actual hazard? How long is the shift? Is there a metal detector on site? What is the temperature? Once you answer those questions, the material choice usually becomes obvious. The wrong approach is to pick a material first and then try to justify it. I have seen that lead to costly reorders, failed audits, and workers who refuse to wear the shoes because they are too heavy or too cold.

Conclusion

Fiberglass and carbon fiber are different materials with different costs, stiffness levels, and use cases. \"Composite toe\" alone is never enough detail for a product spec. At Shoegan, we help B2B buyers specify the right toe cap material from the start — backed by 15+ years of manufacturing experience and full certification support for EN ISO 20345, ASTM F2413, and more. Reach us at [email protected] or WhatsApp +8613008988018.
