What Is a Steel Toe Cap Made Of and How Is It Shaped?

Most buyers assume a steel toe cap is just a chunk of metal sitting inside a shoe. That assumption leads to bad sourcing decisions — and sometimes, real injuries on the job.

A steel toe cap is a thin shell of low-carbon steel, cold-stamped under high pressure into an arch shape. The most common grades are Q235 or ST37-equivalent, with raw sheet thickness between 1.8mm and 2.5mm. The arch geometry is what gives it strength — not just the material itself¹.

$What is a steel toe cap made of\$

The material question sounds simple. But after 20 years in this industry, I can tell you it is one of the most misunderstood topics in safety footwear. The grade of steel, the source of the coil, the stamping die condition, and the arch geometry all affect whether that cap actually protects a worker — or fails them. I want to walk through each of these questions in detail, because the answers matter to every buyer who is serious about product quality.

Are Steel Toe Caps Actually Steel?

Yes — but not the kind most people picture. A lot of buyers imagine a solid block of metal. That is not what is inside a safety shoe.

Steel toe caps are made from thin sheets of low-carbon steel, typically Q235 or ST37-equivalent grade. The raw sheet is 1.8mm to 2.2mm thick before stamping. Cold stamping under thousands of tons of pressure shapes the flat sheet into an arch. That arch shape is what gives the cap its structural strength.

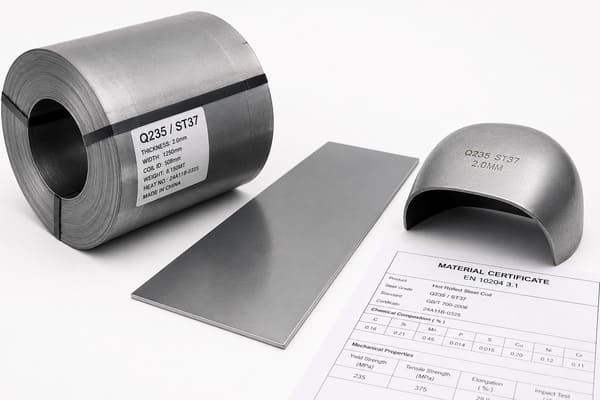

$Steel toe cap steel grade Q235 ST37\$

Early in my career, I worked on a production line where a supplier switched steel grades without telling anyone. The thickness looked the same. The caps passed the basic drop test. But three months later, we got complaints from a construction site in the Middle East. The caps were cracking at the edge after repeated side impacts. We traced it back to inconsistent carbon content in the coil². That one experience changed how I approach material sourcing permanently.

Why the Steel Grade Matters More Than You Think

\"Steel\" is not one thing. Two sheets of metal can look identical and perform very differently under stress. The carbon content, the alloy composition, and whether the coil has been heat-treated all affect how the cap behaves under impact — especially repeated lateral impact, which is the most common real-world failure mode.

Here is what I now require on every purchase order:

Specification	What We Require
Steel grade	Q235 or ST37-equivalent low-carbon steel³
Raw sheet thickness	1.8mm – 2.2mm before stamping
Material certificate	One certificate per coil batch, kept on file
Carbon content tolerance	Specified in writing, not assumed
Supplier change notification	Mandatory written notice before any switch

The material certificate requirement sounds like paperwork. But it is the only way to catch a supplier substitution before it becomes a field failure. I keep certificates on file for every batch we ship. If a client ever has a quality dispute, I can trace the cap back to the coil it came from.

Which Type of Toe Cap Is the Strongest?

After 20 years in this industry, I have stopped answering this question with a single material name. My first question back is always: \"What is hitting the worker’s foot, and from which direction?\"

Steel caps handle 200 joules of vertical drop impact better than any other material⁴. But in environments with lateral crush risk — rolling pipes, shifting loads — aluminum caps often outperform steel because they deform more evenly and do not produce sharp fracture edges that cause secondary injuries⁵.

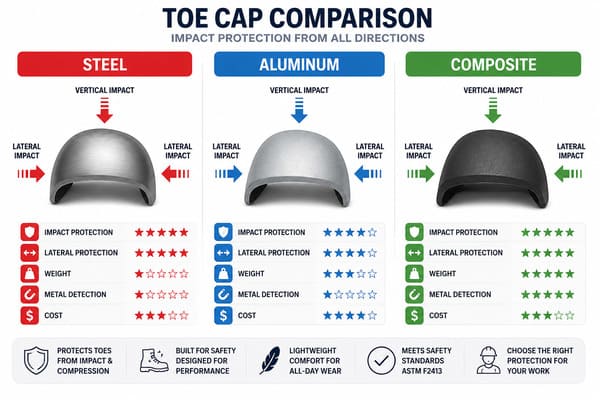

$Strongest toe cap type steel aluminum composite\$

I had a client in South Korea — a ship parts distributor — who came to me after two injury incidents involving workers rolling heavy steel pipes. Both workers were wearing steel-toe shoes that technically passed EN ISO 20345⁶. The caps cracked under lateral load, and the sharp fracture edges caused lacerations. After we switched their spec to aluminum caps, they reported zero cap-related injuries over the next 18 months.

How to Match Cap Type to Worksite Risk

\"Strongest\" is only meaningful when you define what you are protecting against. I use a simple framework when talking to new clients:

Risk Type	Recommended Cap	Reason
Vertical drop (falling objects)	Steel	Highest resistance to compression from above
Lateral crush (rolling loads)	Aluminum	Deforms evenly, no sharp fracture edges
Electrical work environment	Composite	Non-conductive, no risk of conductivity⁷
Cold storage (below -10°C)	Composite	Steel and aluminum accelerate heat loss⁸
Airport / security screening	Composite	Non-metallic, no alarm trigger
General industrial use	Steel or Aluminum	Best balance of cost and protection

The most dangerous thing a buyer can do is choose a cap type based on price or habit. The cap type has to match the actual hazard. When I walk through a new client’s worksite conditions with them, we almost always end up with a different spec than what they originally asked for — and a safer product for their end users.

How Thick Is a Steel Toe Cap?

The raw sheet starts at 1.8mm to 2.5mm depending on the protection class. But raw thickness is only part of the answer.

After cold stamping, the crown of the cap — the highest point of the arch — stretches slightly and becomes thinner, sometimes down to 1.5mm⁹. This is normal and acceptable. What is not acceptable is inconsistent thinning caused by a worn stamping die, which can drop crown thickness to 1.2mm or below and cause cap failure under standard test conditions.

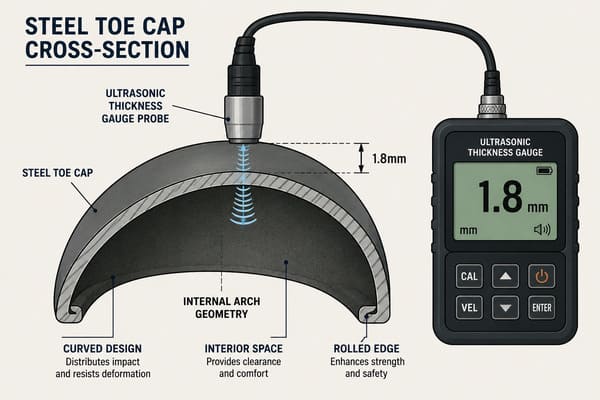

$Steel toe cap thickness quality control ultrasonic\$

I have seen caps from under-maintained tooling where the crown thickness dropped to 1.2mm. They passed the basic visual check. They failed our internal 200-joule drop test at a 15-degree angle. The stamping die had been used past its service life, and no one had flagged it.

What We Do to Catch This Before It Ships

We now run ultrasonic thickness checks on 10% of caps per batch¹⁰. It takes about 20 minutes per 500 pairs. That is not a large time investment. In the last two years, this check has stopped three potential quality failures before they reached a client.

Quality Check	Method	Frequency	What It Catches
Visual inspection	Manual	100% of caps	Surface cracks, deformation
Crown thickness check	Ultrasonic gauge	10% per batch	Die wear, over-stretching
200J drop test (15° angle)	Test rig	Per batch sample	Structural failure under load
Material certificate review	Document check	Every coil batch	Grade substitution

Geometry matters as much as thickness. A cap stamped with the correct arch radius distributes impact load across a wider surface area. A flat or under-arched cap concentrates stress at one point. That is where cracks start. The shape is not a cosmetic detail — it is a structural one.

What Is the Difference Between Steel, Aluminum, and Composite Toe Caps?

This is the question I get from almost every new B2B buyer. The weight numbers alone tell part of the story.

Steel caps weigh 80–120g per pair. Aluminum caps weigh 50–70g. Composite caps weigh 30–50g.¹¹ All three can meet EN ISO 20345 Class 200J impact protection. The real differences are in thermal conductivity, electrical conductivity, weight, and how each material behaves under non-standard impact conditions.

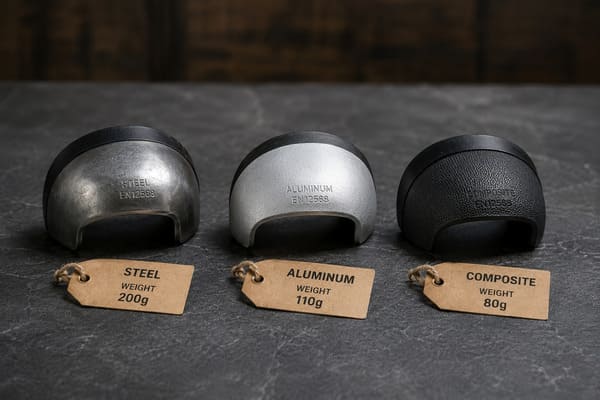

$Difference between steel aluminum composite toe cap\$

I had a client in Germany — a PPE distributor — who was supplying both an automotive plant and a cold storage logistics company. They wanted one SKU for both accounts to simplify inventory. That sounded reasonable until we looked at the actual worksite conditions side by side.

Side-by-Side Comparison: Steel, Aluminum, and Composite

Property	Steel	Aluminum	Composite
Weight (per pair)	80–120g	50–70g	30–50g
Impact protection (EN ISO 20345)	200J ✓	200J ✓	200J ✓
Thermal conductivity	High — cold risk in freezing environments	Medium	Low — best for cold environments
Electrical conductivity	Conductive	Conductive	Non-conductive
Metal detector trigger	Yes	Yes	No
Lateral fracture behavior	Sharp edges on failure	Smooth deformation	Shatters — no sharp edges
Cost	Lowest	Medium	Highest
Best environment	General industrial, construction	Shipyard, manufacturing	Cold storage, electrical, aviation

The German client ended up with two separate specs: steel toe for the automotive floor, composite toe for the cold storage team. Different caps, different lasts, different outsoles. The single-SKU plan would have created a liability risk for both end user groups. One conversation about worksite conditions saved them from that.

Conclusion

Steel toe caps are not all the same. The material grade, thickness, stamping geometry, and cap type all determine whether a worker is actually protected. Choosing the right cap starts with understanding the real hazard — not just the certification number on the box. At Shoegan, we help B2B buyers spec the right protection for the right environment, backed by 15+ years of manufacturing experience and full material traceability. Reach out at [email protected] or WhatsApp +8613008988018.

"[PDF] Plates and Shells", https://community.wvu.edu/~bpbettig/MAE456/Lecture_10_Shell_Elements_b.pdf. In structural mechanics, arched and shell geometries distribute applied loads through compressive stress along the curve rather than concentrating bending stress at a single point, enabling thin-walled structures to resist substantially higher loads than flat plates of equivalent thickness and material. Evidence role: mechanism; source type: education. Supports: That curved arch or shell geometry distributes compressive loads more efficiently than flat geometry, providing greater structural strength for a given material thickness. ↩
"[PDF] Impact and Fracture Toughness Properties of Structural Steels for …", https://rosap.ntl.bts.gov/view/dot/87575/dot_87575_DS1.pdf. In low-carbon steels, carbon content directly influences the balance between strength and toughness; elevated or inconsistent carbon levels can increase hardness while reducing Charpy impact toughness, making components more susceptible to brittle fracture under repeated or lateral impact loading. Evidence role: mechanism; source type: paper. Supports: That variations in carbon content in low-carbon steel affect impact toughness and susceptibility to cracking under repeated loading. Scope note: The specific effect depends on the magnitude of carbon content variation, heat treatment history, and loading conditions; the article’s field failure account is anecdotal and not independently verified. ↩
"Q235 Steel – COSASTEEL", https://www.cosasteel.com/q235/. Q235 is a Chinese national standard (GB/T 700) low-carbon structural steel with a carbon content typically below 0.22%, broadly equivalent to the European ST37 (now S235) designation under EN 10025; both grades are characterized by moderate tensile strength and high formability, making them suitable for cold-stamping applications. Evidence role: definition; source type: institution. Supports: The chemical composition, mechanical properties, and classification of Q235 and ST37-equivalent low-carbon steel grades. Scope note: Equivalence between Q235 and ST37/S235 is approximate; direct interchangeability depends on specific application requirements and should be verified against the relevant national standard. ↩
"Analysis of the Impact Resistance of Toecaps by the Finite Element …", https://pmc.ncbi.nlm.nih.gov/articles/PMC9819023/. EN ISO 20345:2022 specifies a 200-joule impact resistance requirement for Class S safety footwear toe caps, with steel caps historically achieving the highest resistance-to-weight ratio under vertical compressive loading in standardized drop-weight tests. Evidence role: expert_consensus; source type: institution. Supports: That EN ISO 20345 specifies a 200-joule impact test for safety footwear toe caps and that steel caps are widely recognized for high vertical impact resistance. Scope note: The claim that steel outperforms ‘any other material’ under vertical drop is a general industry characterization; published head-to-head comparative test data across all materials under identical conditions is limited in the open literature. ↩
"Analysis of the Impact Resistance of Toecaps by the Finite Element …", https://pmc.ncbi.nlm.nih.gov/articles/PMC9819023/. Aluminum alloys used in protective applications generally exhibit greater ductility and plastic deformation capacity compared to low-carbon steel under lateral or oblique loading, reducing the likelihood of sharp-edged fracture surfaces that can cause secondary lacerations. Evidence role: mechanism; source type: paper. Supports: That aluminum alloys tend to deform plastically under lateral loading while low-carbon steel is more prone to brittle fracture producing sharp edges under certain impact conditions. Scope note: The specific fracture behavior depends heavily on alloy grade, temper, and loading rate; this characterization is a general materials science principle and may not apply uniformly to all steel and aluminum cap formulations used in safety footwear. ↩
"ISO 20345:2021 Safety Footwear Standard – Scribd", https://www.scribd.com/document/841400516/ISO-20345-2021. EN ISO 20345 is the harmonized European and international standard specifying minimum requirements for safety footwear, including mandatory toe cap protection rated at 200 joules of impact energy and 15 kilonewtons of compression force, applicable to footwear intended for occupational use. Evidence role: definition; source type: institution. Supports: The scope and requirements of EN ISO 20345 as the international standard governing safety footwear, including toe cap impact and compression testing. ↩
"Steel Toe Caps vs Composite Toe Caps – ProFit Safety Footwear", https://profitfootwear.com/blog/steel-toe-caps-vs-composite-toe-caps/. Composite toe caps are typically manufactured from non-metallic materials including fiberglass-reinforced polymer or aramid fiber composites, which are inherently electrically non-conductive; EN ISO 20345 includes provisions for electrical hazard footwear classifications where non-conductive toe protection is required. Evidence role: definition; source type: institution. Supports: That composite toe caps made from non-metallic materials such as fiberglass or Kevlar are electrically non-conductive, unlike steel or aluminum caps. Scope note: Some composite formulations incorporating carbon fiber may exhibit partial electrical conductivity; the non-conductive property applies specifically to glass fiber and aramid-based composites. ↩
"Cold Stress Guide | Occupational Safety and Health …", http://www.osha.gov/emergency-preparedness/guides/cold-stress. Steel has a thermal conductivity of approximately 50 W/m·K and aluminum approximately 205 W/m·K, compared to typical composite materials at 0.2–1.0 W/m·K; this difference means metal toe caps conduct heat away from the foot substantially faster in sub-zero environments, increasing the risk of cold stress. Evidence role: mechanism; source type: paper. Supports: That steel and aluminum have significantly higher thermal conductivity than composite materials, increasing heat loss from the foot in cold environments. Scope note: The practical impact on foot temperature depends on insole and upper insulation, boot fit, and activity level; thermal conductivity of the cap alone does not fully determine cold protection performance. ↩
"Cold Roll Forming Process Design for Complex Stainless-Steel …", https://pmc.ncbi.nlm.nih.gov/articles/PMC9697423/. During cold stamping of domed or arched geometries, the crown region undergoes biaxial tensile strain as material is stretched over the punch radius, resulting in measurable thickness reduction relative to the original blank; this thinning is a well-characterized phenomenon in sheet metal forming and is accounted for in die design and minimum thickness specifications. Evidence role: mechanism; source type: education. Supports: That material thinning at the crown or apex of a stamped dome or arch shape is a predictable consequence of biaxial tensile strain during cold forming. ↩
"[PDF] ULTRASONIC NONDESTRUCTIVE TESTING – ROSA P", https://rosap.ntl.bts.gov/view/dot/69001/dot_69001_DS1.pdf. Ultrasonic pulse-echo thickness measurement is a recognized non-destructive testing technique, standardized under ASTM E797 and related methods, capable of measuring metal wall thickness from a single surface with accuracy typically within ±0.1 mm on steel components, making it applicable to quality control of stamped metal parts. Evidence role: general_support; source type: institution. Supports: That ultrasonic pulse-echo thickness measurement is a validated non-destructive testing method suitable for measuring wall thickness in thin steel components. Scope note: Measurement accuracy on curved surfaces such as a cap crown depends on probe selection, couplant application, and operator technique; the 10% sampling rate cited is a manufacturer practice and not derived from a published statistical sampling standard. ↩
"1910.136 – Foot protection. | Occupational Safety and Health … – OSHA", http://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910.136. Industry product specifications and safety footwear manufacturer data generally indicate steel toe caps weigh approximately 80–120 g per pair, aluminum caps 50–70 g, and composite caps 30–50 g, reflecting the density differences between the respective materials. Evidence role: statistic; source type: other. Supports: Typical weight ranges for steel, aluminum, and composite toe caps used in safety footwear. Scope note: These ranges are approximate and vary by cap size, protection class, and manufacturer; no single authoritative published source consolidates these figures across all producers. ↩
