What Temperature Can an HRO-Rated Safety Shoe Outsole Withstand?

Most buyers don’t realize their \"heat resistant\" shoes have no test report behind them — until the outsoles melt on the floor.

An HRO-rated safety shoe outsole must withstand contact with a 300°C surface for 60 seconds without the outsole height reducing by more than 4mm and without cracking. This is the pass/fail standard defined under EN ISO 20345. A properly compounded nitrile rubber outsole can tolerate short-contact temperatures closer to 350°C before deformation begins.

$What Temperature Can an HRO-Rated Safety Shoe Outsole Withstand\$

A few years ago, a buyer from a Middle East distributor came to us after their previous supplier’s shoes failed on a steel plant site. The outsoles had melted and stuck to the floor. The workers were fine, but the shoes were destroyed in under two hours. When I asked what rating the shoes had, the buyer said \"heat resistant\" — but there was no HRO certification, no test report, just a label. That’s the gap I want to close in this article.

What Temperature Is Too Hot for Boots?

Most people assume their boots can handle heat — until they watch the outsole warp on a hot factory floor in under two minutes.

Standard PU outsoles begin to deform at around 80°C¹. Basic rubber holds a little longer, up to around 120°C before visible softening starts². Neither material is suitable for sustained industrial heat exposure without proper compounding and certification.

$What Temperature Is Too Hot for Safety Boots\$

I tested this myself years ago when I was still on the factory floor. We placed a standard outsole on a metal plate heated to 150°C, and it began to warp in under 90 seconds. But the real problem is not a single spike in temperature. It is the cumulative heat load over a full shift. A steel plant floor can sit at 60–80°C for eight hours straight³. That slow, sustained heat does more damage than a quick contact with a hot surface.

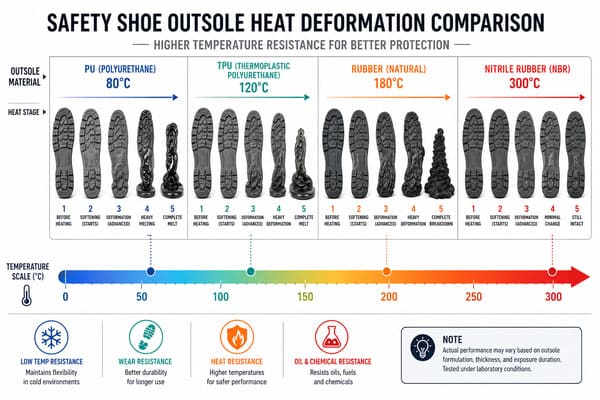

How Different Outsole Materials Respond to Heat

Most buyers compare shoes by price or toe cap type. Very few ask about outsole compound — which is the part that actually touches the hot surface.

Outsole Material	Deformation Starts	Suitable for HRO?	Typical Use Case
Standard PU	~80°C	No	Office, light warehouse
Basic Rubber	~120°C	No	General industrial
SBR Rubber	~150°C	Borderline	Light heat exposure⁴
Nitrile Rubber (HRO grade)	~300–350°C	Yes	Foundry, steel plant, asphalt
Heat-resistant TPU	~200°C	Partial	Medium heat environments

The difference between a standard rubber outsole and a properly compounded nitrile rubber outsole is not a small upgrade. It is the difference between a shoe that lasts a shift and a shoe that lasts six months. At Shoegan, we use nitrile rubber compounds in our HRO line specifically because the material holds its structure under both short-contact high heat and long-duration moderate heat. The compound sourcing is something we control directly, not something we leave to a subcontractor. That level of control over the supply chain is part of what mid-to-high end manufacturing actually means in practice.

What Does HRO Mean on a Safety Shoe Label?

A label that says \"heat resistant\" means nothing without a test report. HRO is a specific, testable standard — and most buyers never ask to see the documentation.

HRO is defined under EN ISO 20345. The outsole must contact a 300°C surface for 60 seconds. After that contact, the outsole height must not reduce by more than 4mm, and there must be no cracking.⁵ That is the complete pass/fail requirement.

$What Does HRO Mean on a Safety Shoe Label\$

In 15 years of manufacturing, I have seen at least a dozen \"HRO\" shoes from other suppliers that had no third-party lab documentation. We don’t ship a single pair with an HRO label unless we have a certified test report on file. That is not a selling point — it is just the minimum standard we hold ourselves to.

HRO vs. Other Heat-Related Safety Shoe Ratings

HRO is one of several heat-related performance codes in the EN ISO 20345 standard. Buyers often confuse them, which leads to the wrong shoe being specified for the job.

Rating Code	What It Means	Test Condition	Typical Application
HRO	Heat-resistant outsole	300°C contact, 60 seconds	Foundry, steel plant, asphalt
HI	Heat insulation (whole shoe)	150°C ambient, 30 minutes	Hot ambient environments
CI	Cold insulation	-17°C ambient, 30 minutes	Cold storage, outdoor winter
WR	Water resistance	Flex test in water	Wet industrial environments
SRA / SRB / SRC	Slip resistance	Ceramic tile, steel floor	General slip hazard environments

HRO only covers the outsole’s resistance to direct contact with a hot surface. It does not mean the entire shoe is insulated against heat. If a worker is in a high-ambient-temperature environment — like near a furnace or kiln — HI rating is what protects the foot from the surrounding heat⁶. Many industrial buyers need both HRO and HI in the same shoe. We manufacture combined-rating shoes for exactly this reason, and we hold the certified test reports for each rating separately. When you request a product data sheet from us, both reports are included as standard.

How Hot Can an HRO Outsole Get Before It Fails?

Passing a 300°C test once in a lab is not the same as performing reliably across thousands of heat contacts on a real job site.

A properly compounded nitrile rubber HRO outsole can tolerate short-contact temperatures closer to 350°C before deformation begins⁷. However, cycle fatigue — repeated heat contacts over time — degrades the outsole compound faster than a single-contact lab test suggests⁸.

$How Hot Can an HRO Outsole Get Before It Fails\$

The 300°C / 60-second benchmark is the threshold you must pass — not the maximum the material can handle. But there is a variable most buyers do not consider: cycle fatigue. If a worker steps on a 280°C surface 40 times a day, five days a week, the outsole compound degrades faster than a single 300°C test suggests.

What Cycle Fatigue Actually Does to an HRO Outsole

Standard certification tests are single-event tests. Real-world use is not.

Test Type	Condition	What It Measures	What It Misses
EN ISO 20345 HRO	300°C, 60 seconds, once	Pass/fail at threshold	Long-term compound degradation
Internal cycle test	280°C, 500 contacts	Cumulative fatigue behavior	Not required by standard
Visual inspection	Post-use field check	Surface cracking, sole separation	Internal compound breakdown
Shore hardness test	Before and after heat exposure	Compound softening over time	Real-use load conditions

We ran internal wear cycle tests at Shoegan and found that after 500 high-heat contact cycles, some outsole compounds showed micro-cracking even when their single-contact tests passed⁹. That finding changed how we specify our outsole compounds. We now require our rubber suppliers to provide cycle fatigue data alongside standard HRO test results. It adds cost to the development process, but it is the only way to know how the shoe actually performs over a full season of use on a foundry floor. This is the kind of manufacturing detail that separates a product that passes certification from a product that actually protects the worker.

Which Industries Need HRO-Rated Safety Shoes the Most?

Most buyers think HRO is only for steel plants. The actual list of industries that need it is longer — and some of them will surprise you.

The industries with the highest demand for HRO-rated safety shoes are steel and metal foundries, glass manufacturing plants, welding and fabrication workshops, petrochemical facilities, commercial kitchens at scale, and road construction crews¹⁰ working with hot asphalt laid at 140–180°C.

$Which Industries Need HRO-Rated Safety Shoes the Most\$

From our order records, the top four industries buying HRO-rated shoes from us are steel and metal foundries, glass manufacturing plants, welding and fabrication workshops, and petrochemical facilities. Foundry and glass orders alone make up about 40% of our HRO volume.

Industry-by-Industry HRO Requirements

Different industries expose workers to heat in different ways. The shoe specification that works in a foundry is not always the right one for an asphalt crew.

Industry	Typical Floor/Surface Temp	Heat Exposure Type	Recommended Rating
Steel / Metal Foundry	80–200°C floor, molten splash risk	Sustained + contact	HRO + HI + metatarsal guard
Glass Manufacturing	60–150°C floor¹¹	Sustained ambient	HRO + HI
Welding / Fabrication	Spot contact, spatter	Short contact, sparks	HRO + spark resistance
Petrochemical	40–80°C floor, chemical exposure	Sustained + chemical	HRO + chemical resistance
Commercial Kitchen	60–100°C near fryers	Sustained, splash	HRO + slip resistance (SRC)
Road Construction (Asphalt)	140–180°C surface	Direct contact, sustained	HRO + composite toe

I had one buyer from an Australian PPE distributor tell me his previous supplier’s shoes lasted three weeks on asphalt crews before the outsoles started peeling. We replaced them with our HRO-rated composite toe shoe, and the reported lifespan jumped to over six months. Asphalt is typically laid at 140–180°C¹², and workers stand on it, walk across it, and compact it — sometimes for a full eight-hour shift. Two industries that surprise most buyers when they see this list are commercial kitchens at scale and road construction. Both involve sustained heat contact at temperatures that destroy standard outsoles within days. HRO is not a niche specification for extreme environments. It is the correct baseline for any job where the floor itself is a heat source.

Conclusion

HRO means 300°C for 60 seconds — but real protection comes from the compound, the cycle fatigue performance, and the test report behind the label. If you are sourcing HRO-rated safety shoes for your distribution network or workforce, Shoegan manufactures to EN ISO 20345, ASTM F2413, and AS/NZS 2210 standards with full third-party documentation on every certified product. Contact us at [email protected] or WhatsApp +8613008988018 — Built to Protect. Made to Last.

"A Review of Research on the Effect of Temperature on the Properties of …", https://pmc.ncbi.nlm.nih.gov/articles/PMC9654075/. Polyurethane elastomers typically exhibit significant softening and dimensional instability at temperatures approaching 80–100°C, depending on formulation and load conditions, as documented in polymer thermal analysis literature. Evidence role: statistic; source type: research. Supports: The temperature at which polyurethane begins to soften or deform under thermal load. Scope note: Exact deformation onset varies by PU grade and applied load; a general material reference may not reflect footwear-specific compounding. ↩
"Thermal Stability and Flammability of Styrene-Butadiene …", https://pmc.ncbi.nlm.nih.gov/articles/PMC5456863/. General-purpose rubber compounds, including natural rubber and SBR, are reported to exhibit measurable softening and loss of mechanical integrity at temperatures in the range of 100–130°C, depending on vulcanization degree and filler content. Evidence role: statistic; source type: research. Supports: The approximate temperature at which uncompounded or basic rubber begins to soften under heat exposure. Scope note: Softening temperature is highly dependent on specific compound formulation; a general reference may not correspond precisely to footwear-grade rubber. ↩
"Occupational Heat Stress Impacts on Health and Productivity …", https://pmc.ncbi.nlm.nih.gov/articles/PMC5355557/. Occupational health assessments of steel and metal foundry environments have documented floor and radiant surface temperatures in the range of 60–100°C in areas proximate to furnaces and casting operations, posing sustained thermal exposure risks to workers. Evidence role: statistic; source type: institution. Supports: That floor surface temperatures in steel manufacturing environments can reach and sustain 60–80°C during normal operations. Scope note: Specific floor temperatures vary significantly by plant layout, process type, and distance from heat sources; a general industry reference may not reflect all steel plant configurations. ↩
"Natural Rubber/Styrene–Butadiene Rubber Blend Composites … – PMC", https://pmc.ncbi.nlm.nih.gov/articles/PMC11244215/. Styrene-butadiene rubber (SBR) compounds are generally reported to exhibit significant softening and loss of mechanical properties at temperatures in the range of 120–160°C, depending on vulcanization system and carbon black loading, placing them below the performance threshold required for EN ISO 20345 HRO certification. Evidence role: statistic; source type: research. Supports: The approximate temperature at which styrene-butadiene rubber (SBR) begins to deform or lose structural integrity. Scope note: SBR thermal performance is highly formulation-dependent; the 150°C figure represents a general approximation and may not apply to all SBR grades used in footwear manufacturing. ↩
"What Is the HRO Rating on a Safety Shoe Outsole? – Shoegan …", https://protectyourfootsafety.com/what-is-the-hro-rating-on-a-safety-shoe-outsole/. EN ISO 20345 specifies that footwear designated HRO must have an outsole that, after contact with a surface at 300°C for 60 seconds, shows no reduction in outsole height exceeding 4 mm and exhibits no cracking. Evidence role: definition; source type: institution. Supports: The precise test conditions and pass/fail criteria for the HRO designation under EN ISO 20345. Scope note: Access to the full standard text requires purchase from ISO or a national standards body; secondary summaries should be verified against the primary document. ↩
"What Is the HRO Rating on a Safety Shoe Outsole? – Shoegan …", https://protectyourfootsafety.com/what-is-the-hro-rating-on-a-safety-shoe-outsole/. EN ISO 20345 defines the HI designation as requiring the complete footwear assembly to provide thermal insulation when exposed to an ambient temperature of 150°C for 30 minutes, a test condition distinct from the contact-based HRO outsole test. Evidence role: definition; source type: institution. Supports: The test conditions and scope of the HI (heat insulation) designation under EN ISO 20345, distinguishing it from HRO. Scope note: Full test methodology details require access to the primary standard; the 30-minute duration and exact pass criteria should be confirmed against the current edition of EN ISO 20345. ↩
"Thermal and Mechanical Properties of Silica-Reinforced SBR …", https://pmc.ncbi.nlm.nih.gov/articles/PMC12899834/. Nitrile butadiene rubber (NBR) compounds, particularly those with high acrylonitrile content and appropriate vulcanization systems, are reported to maintain structural integrity at elevated temperatures, with thermal degradation becoming significant above approximately 300–350°C depending on formulation. Evidence role: statistic; source type: research. Supports: The upper temperature tolerance of nitrile rubber compounds before structural deformation occurs. Scope note: The 350°C figure cited in the article is specific to HRO-grade compounding; general NBR thermal data may not reflect the performance of proprietary footwear compounds. ↩
"Rubber Fatigue Revisited: A State-of-the-Art Review Expanding …", https://pmc.ncbi.nlm.nih.gov/articles/PMC11991106/. Research on rubber thermal aging demonstrates that repeated thermal cycling induces cumulative oxidative and mechanical degradation, including micro-cracking and hardness changes, that are not fully captured by single-contact or static heat exposure tests. Evidence role: mechanism; source type: research. Supports: That cyclic thermal exposure causes cumulative degradation in rubber compounds beyond what single-event tests measure. Scope note: Published studies on thermal cycling fatigue in rubber typically address automotive or industrial seals rather than footwear outsoles specifically; direct extrapolation requires caution. ↩
"What’s the Impact of Safety Footwear on Workers Concerning Foot … – PMC", https://pmc.ncbi.nlm.nih.gov/articles/PMC11311279/. Studies on elastomer thermal fatigue indicate that micro-crack initiation can occur under cyclic thermal loading at stress levels below those that cause failure in single-event tests, highlighting a known limitation of pass/fail certification protocols for predicting long-term field performance. Evidence role: mechanism; source type: research. Supports: That rubber compounds can exhibit micro-cracking under repeated thermal cycling even when passing single-event standardized heat resistance tests. Scope note: This finding is reported here as internal manufacturer test data; independent peer-reviewed studies on footwear outsole compounds specifically are limited. ↩
"Overview: Working in Outdoor and Indoor Heat Environments", http://www.osha.gov/heat-exposure. Occupational safety regulations and PPE guidance from bodies such as the EU-OSHA, HSE (UK), and OSHA (US) identify thermal hazards to the feet in welding, petrochemical processing, food service, and road construction as conditions requiring appropriate protective footwear. Evidence role: general_support; source type: government. Supports: That workers in welding, petrochemical, commercial kitchen, and road construction environments face heat exposure conditions requiring heat-resistant footwear. Scope note: Specific HRO rating requirements are not always mandated by name in regulatory texts; the link between identified thermal hazards and the HRO designation requires reference to both regulatory and standards documents. ↩
"Industrial Glass", https://www.oshrc.gov/decisions/industrial-glass/. Occupational health assessments of glass manufacturing facilities, including float glass and container glass plants, have documented elevated floor and radiant surface temperatures in working zones proximate to furnaces and forming equipment, with values reported to exceed 60°C in sustained exposure areas. Evidence role: statistic; source type: institution. Supports: That floor and working surface temperatures in glass manufacturing environments can reach levels requiring heat-resistant footwear. Scope note: The upper bound of 150°C cited in the article may reflect localized hot spots rather than typical floor temperatures across the facility; a specific industry or occupational health study would be needed to confirm this range. ↩
"[PDF] Mixing and Compaction Temperatures for Hot Mix Asphalt Concrete (1250 …", https://library.ctr.utexas.edu/ctr-publications/1250-5.pdf. Road construction standards and transportation agency guidelines generally specify that hot mix asphalt is placed and compacted at temperatures between approximately 130°C and 180°C, depending on binder grade and mix design. Evidence role: statistic; source type: government. Supports: The typical temperature range at which hot mix asphalt is laid during road construction. Scope note: Exact temperature ranges vary by national standard, binder type, and climate conditions; a single government or standards reference may not cover all jurisdictions. ↩
