What Is Direct Injection Construction in Safety Shoes?

Most buyers ask me about materials — steel toe specs, outsole compounds, upper leather grades. But construction is where the real difference lives. I learned this the hard way, watching clients lose accounts over sole separation.

Direct injection construction is a manufacturing method where liquid polyurethane is injected directly onto the shoe upper inside a sealed mold¹. The sole bonds to the upper both chemically and mechanically at the same time, forming a single unified structure with no glue line and no stitching gap.

I had a client from the Netherlands who switched to a cheaper cemented shoe supplier. Three months in, his end customers were reporting sole separation. He lost the account. He came back to me, switched to our direct injection line, and has been reordering every quarter for the past four years. Direct injection is not just a manufacturing method. It is a decision about bond integrity.

How Does Direct Injection Construction Work in Safety Shoes?

Most buyers never see the inside of the production process. But understanding what happens in the mold explains why some shoes fail at the job site while others do not. The difference is not always visible from the outside.

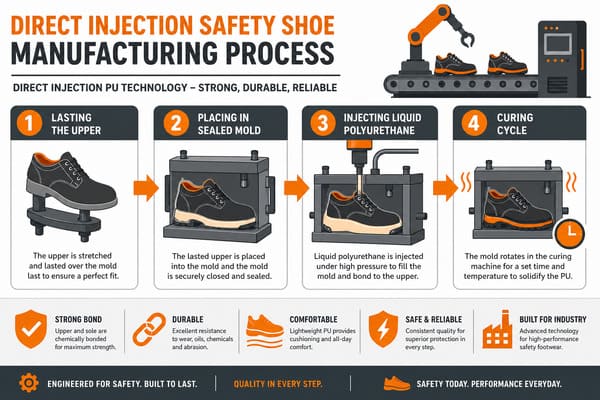

The process has four steps: last the upper, place it into a precision mold, inject liquid polyurethane at controlled temperature and pressure, and allow it to cure — typically three to five minutes per pair depending on sole design². The bond forms both chemically and mechanically during that same cure cycle.

The part most people do not see is what happens when the mold or temperature is wrong. Internal bond failure does not show on the surface. The shoe looks fine in the warehouse. It fails at the job site.

The Role of Mold Precision

We invest heavily in mold precision. Our current tooling cost per style runs between $3,000 and $8,000 USD. That is not a small number. But it is the reason our sole separation rate stays below 0.3%³ across all direct injection styles.

Cheap tooling is the hidden reason so many \"direct injection\" shoes in the market still fail. The mold controls cavity pressure, sole geometry, and surface contact area during injection. When the mold is imprecise, voids form inside the sole structure. Those voids become failure points under load.

Key Process Variables That Affect Bond Quality

Every variable in this table is controlled by machine, not by a worker’s judgment. That consistency is what makes direct injection reliable at scale.

What Are the Benefits of Direct Injection Safety Shoes?

Bond strength is the obvious answer. But most procurement managers focus on bond strength without thinking about what happens to the worker during an eight-hour shift. That is where direct injection earns its value.

Direct injection safety shoes deliver superior sole-to-upper bond strength, engineered dual-density cushioning, waterproof construction, and production consistency. The sole cannot peel away because there is no adhesive layer. The PU density can be tuned at the midsole and outsole independently during the same injection cycle.

The benefit I talk about most with clients is what I call \"hour 8 comfort⁴.\" A warehouse worker or assembly line worker is not walking ten minutes to a meeting. They are on their feet for eight to ten hours straight⁵. By hour six, a poorly cushioned shoe becomes a real problem — fatigue, back pain, reduced focus.

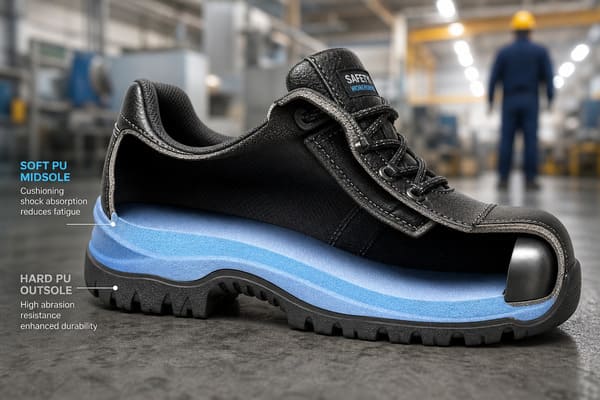

Dual-Density PU: What It Means in Practice

Direct injection lets us engineer a dual-density PU sole in a single production step. We set a softer density at the midsole and a harder density at the outsole⁶.

I had a factory buyer in Malaysia tell me that after switching to our dual-density direct injection model, worker complaints about foot fatigue dropped noticeably within the first month. That is not a marketing claim. That is what happens when the midsole density is actually engineered for sustained wear, not just set to whatever is cheapest to run.

Production Consistency at Scale

Glue application in cemented shoes is a human process. Injection is a machine process. When a buyer orders 3,000 pairs, pair 3,000 performs exactly the same as pair one. For buyers managing quality claims across large worker populations, this consistency is a real operational advantage.

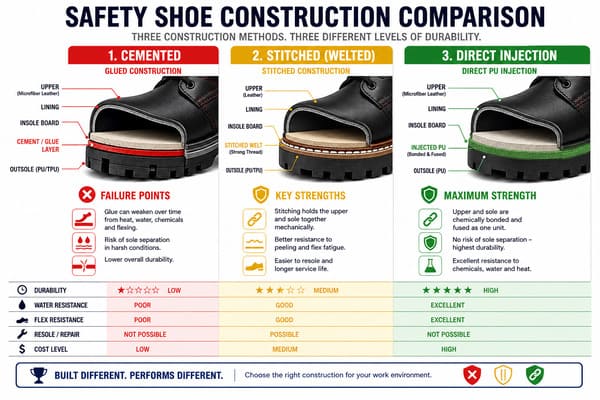

How Does Direct Injection Compare to Cemented and Stitched Construction?

I get this comparison question from procurement managers almost every week. The answer matters because the wrong construction choice for the environment will create warranty claims, worker complaints, and supplier disputes. Let me explain how I actually think about it.

Cemented construction uses adhesive to bond the sole and is fast to produce but degrades under heat, oil, and sustained moisture. Stitched or Goodyear welt construction is highly durable and repairable but adds significant weight and does not support waterproofing. Direct injection bonds without adhesive, balancing bond integrity, weight, and water resistance in a single structure.

Cemented construction is fast and cheap. A skilled worker can cement and press a sole in under two minutes. That is why low-cost manufacturers default to it. But the glue bond degrades in heat above 60°C⁷, in oil exposure, and in sustained wet conditions. We have tested cemented samples in our lab at 70°C for 48 hours. Peel strength drops by over 40%⁸.

Side-by-Side Construction Comparison

Goodyear welt and stitched construction is extremely durable and repairable. But it adds 150 to 200 grams per pair⁹ and is not suitable for waterproofing or chemical resistance by design. Direct injection sits between the two. Not the cheapest to produce, not the heaviest in tradition, but the best combination of bond integrity, waterproofing, weight control, and scalable quality for industrial safety shoes. For buyers sourcing mid-to-high end product, this is the construction I recommend first.

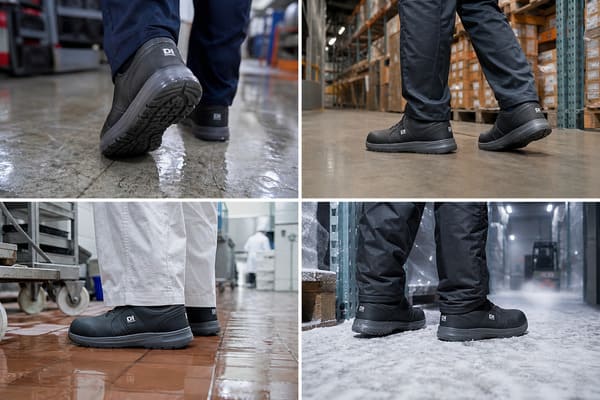

Which Industries Benefit Most from Direct Injection Safety Shoes?

The honest answer is any industry where a worker is on their feet for a full shift. But that is too broad to be useful. Let me break it down by actual working conditions and what direct injection solves for each one.

Logistics, warehousing, food processing, and light manufacturing are the industries that benefit most from direct injection safety shoes. Workers in these environments spend eight to ten hours on hard or wet floors, require low-fatigue cushioning, and need consistent slip resistance without adding shoe weight.

These are not extreme environments like mining or petrochemical plants. But the daily physical load is real and cumulative. Logistics and warehousing workers average between 15,000 and 20,000 steps per day¹⁰. Food processing workers spend full shifts on wet, cold concrete floors. Light manufacturing workers need slip resistance and low fatigue across double shifts.

Industry-by-Industry Breakdown

What Happens When You Get It Right

I have one client supplying a logistics company in Germany with 400 workers. They switched to our direct injection model two years ago. They have not had a single sole separation complaint since. That outcome is not about one pair of shoes. It is about what happens when the right construction method is matched to the right working environment, and the tooling quality behind it is taken seriously.

Direct injection solves three things at once for these workers. The sole stays bonded. The cushioning holds up past the first 60 days. And the shoe stays light enough that it does not become a burden by the end of the shift.

Conclusion

Construction determines how long a safety shoe actually protects the worker. Direct injection is the method that combines bond strength, comfort, and consistency most reliably for industrial use. At Shoegan, every direct injection style is engineered to the same standard — Built to Protect. Made to Last. Contact us at [email protected] or WhatsApp +8613008988018 to discuss your sourcing needs.
