What Is PU Injection Molding in Safety Shoe Manufacturing?

I’ve been in this industry for over 20 years. I started on the factory floor, and one of the first things my supervisor told me was: \"The upper is what sells the shoe. The sole is what keeps the worker safe.¹\" Most buyers I talk to spend 80% of their questions on the toe cap material and maybe 5% on how the sole is attached. That ratio should probably be reversed.

PU injection molding is a sole attachment method where liquid polyurethane is injected directly into a mold around the lasted upper, forming a chemical and mechanical bond without adhesive. It produces a lightweight, durable, and consistent sole that outperforms most glued or cemented alternatives in bond strength and long-term cushioning.

PU injection molding is the method I recommend most often for mid-to-high end safety shoes. After watching thousands of pairs come back from the field with delaminated soles, cracked outsoles, and compressed midsoles that lost all cushioning after three months, I learned why sole construction matters so much. This article explains exactly how it works, where it wins, and where it doesn’t.

How Does PU Injection Molding Work in Safety Shoe Production?

A few years ago, I brought a new client — a PPE distributor from Germany — to visit our production line. He’d been buying cemented safety shoes from another supplier for years and had never seen PU injection molding up close. When he watched the liquid PU flow into the mold and wrap around the lasted upper in under 60 seconds, he said: \"That’s it? That’s the whole process?\"

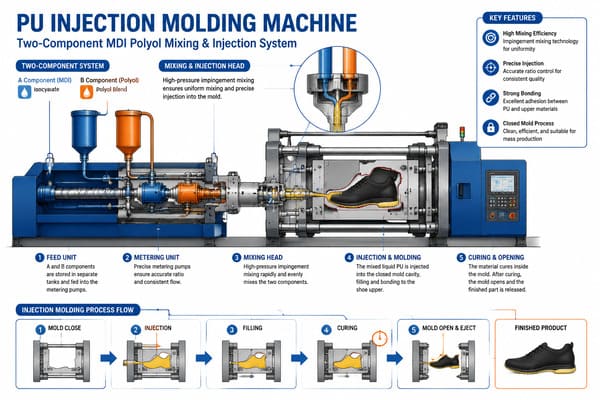

In PU injection molding, the lasted upper is first roughed and primed to prepare the bonding surface. Liquid polyurethane — mixed from two components, MDI and polyol — is then injected into a closed mold. The material expands, fills the mold cavity, and bonds directly to the upper without any adhesive layer.

The machine makes it look simple, but there is a lot happening inside that mold. The bond mechanism is the part most buyers don’t think about. Before injection, the upper is roughed and primed so the PU doesn’t just sit against the leather or fabric — it chemically and mechanically locks onto it. There is no glue layer. The sole becomes part of the shoe.

The Two-Component Ratio: Why It Matters More Than Most People Know

The two-component mixing head in the machine controls the ratio of MDI (the isocyanate component) to polyol. This ratio determines hardness, rebound, and how long the sole lasts under compression.

A 2–3% deviation in ratio can mean the difference between a sole that lasts 18 months and one that starts breaking down at 9 months². We check this ratio at the start of every production run. A lot of factories don’t — and that is where batch inconsistency comes from. Beyond ratio control, mold temperature and injection pressure also need to be tightly managed. Too cold and the PU doesn’t flow evenly into the mold cavity. Too much pressure and you get flash and dimensional drift. These are not variables you can ignore and fix later in QC. They have to be right during the shot.

What Are the Key Advantages of PU Injection Molded Soles?

The number one complaint I hear from buyers who have had bad experiences with cheaper safety shoes is delamination — the sole peeling away from the upper, sometimes after just two or three months of use. I had a client in the Middle East who came to us after exactly this problem. His previous supplier used cold-glue cementing, and in the high-humidity, high-heat environment his workers operated in, the glue bond simply failed. He lost a client because of it.

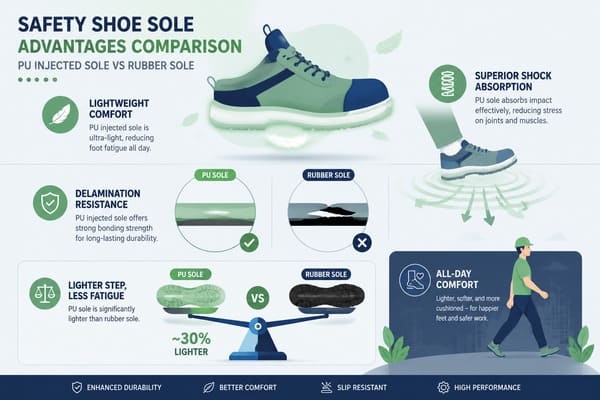

PU injection molded soles offer three core advantages: no glue line means near-zero delamination risk, lower density PU material reduces total shoe weight by 100–150g compared to rubber soles, and PU’s natural shock absorption maintains around 85% cushioning performance after 500,000 compression cycles in lab testing³.

With PU injection molding, delamination is almost never the failure point — because there is no glue line. The bond strength of a well-executed PU injection sole typically exceeds 4.5 N/mm when tested to EN ISO 20345 standards⁴. Beyond bond strength, the two advantages I talk about most are weight and long-term comfort.

Weight, Comfort, and Dimensional Consistency: The Three Numbers That Matter

PU is naturally lighter than rubber. A typical PU injected sole for a size 42 safety shoe weighs around 280–320g, compared to 400–450g for a comparable rubber sole. For a worker standing 10 hours a day, that 100–150g difference matters more than most people expect.

On comfort, PU has a natural shock-absorbing quality and recovers well after compression. A good PU midsole maintains around 85% of its original cushioning performance after 500,000 compression cycles in lab testing. A cheap EVA midsole might drop to 60% after the same number of cycles⁵. For OEM clients with strict QC, another advantage is dimensional consistency — because the mold defines the geometry, every sole comes out the same. We have had clients tell us our rejection rate on sole shape was under 0.3%, compared to 2–4% with their previous cemented supplier⁶.

How Does PU Injection Molding Compare to Other Sole Attachment Methods?

I think the most useful thing I can do here is be straight about where each method wins and where it doesn’t — rather than just saying PU injection is best. Each method exists because it solves a real problem. The question is whether that problem matches your application.

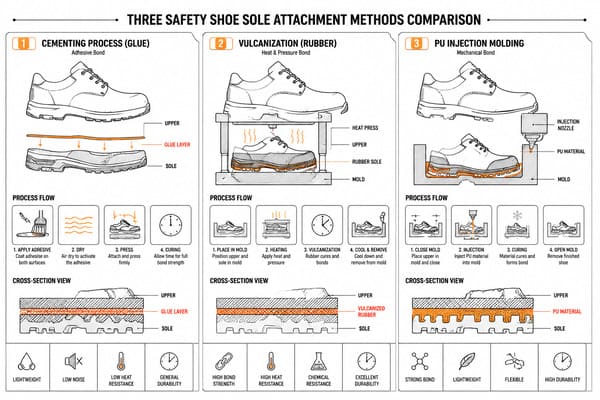

PU injection molding sits between cementing and vulcanization: faster and more consistent than cementing, lighter and more cushioned than vulcanized rubber. Cementing works for flexible designs and low MOQs. Vulcanization is better for extreme chemical or heat resistance. PU injection is the strongest choice for general industrial safety shoes requiring durability, comfort, and consistency.

Cementing is cheaper and more flexible. For small MOQs or complex upper designs, it makes sense. But bond quality depends heavily on the operator. I have seen two shoes cemented on the same line, same day, with a 30% difference in peel strength — just because one worker applied slightly less primer. That kind of variation is hard to control at scale.

A Direct Comparison Across the Three Main Methods

Vulcanization gives you excellent rubber performance — good chemical resistance, good heat resistance — but the process runs at 150–160°C for 15–20 minutes per pair⁷. It is slow, energy-intensive, and adds cost. It is the right call for specialized industrial environments, not for general-use safety shoes. The one limitation I always tell clients upfront: PU soles perform poorly in sustained temperatures below -30°C. The material hardens and can crack.⁸ For cold-storage warehouse workers or operations in extreme climates, we recommend a rubber or TPU outsole instead. I would rather lose a small part of a sale than have a client’s workers dealing with cracked soles in a -40°C freezer.

Which Safety Shoe Types Benefit Most from PU Injection Molding?

About three years ago, a client came to us wanting to build a full product line — 12 SKUs covering everything from general manufacturing to chemical plants to cold-storage logistics. His initial brief said \"PU injection soles across the entire range.\" I sat down with him on a video call and we went through each SKU one by one. By the end, we agreed that 8 of the 12 SKUs were well-suited for PU injection, 2 needed a rubber outsole for chemical resistance, and 2 needed a hybrid PU/rubber construction for cold environments.

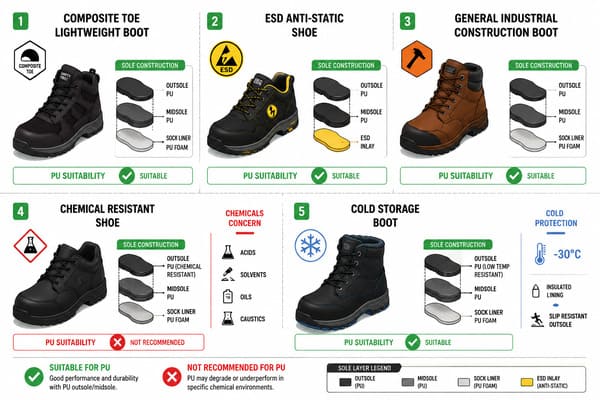

PU injection molding works best for composite toe lightweight shoes, ESD anti-static shoes, and general industrial safety shoes in construction, logistics, and light manufacturing. It is not the right choice for shoes with prolonged chemical splash exposure or continuous contact with surfaces above 130°C.

That kind of conversation — where we push back on the brief when the brief is not right — is something a trading company usually will not do. The SKUs where PU injection genuinely shines are composite toe lightweight shoes, where PU’s low density complements the composite cap and keeps total shoe weight under 600g for many styles, and ESD anti-static shoes, where PU can be compounded to achieve a surface resistance of 10⁶ to 10⁹ Ω, meeting EN ISO 20345 ESD requirements⁹.

Matching Sole Construction to Application: A Practical Guide

Where I steer clients away from pure PU: shoes rated for prolonged chemical splash exposure, and shoes for continuous contact with surfaces above 130°C¹⁰. For both of those situations, you need a different outsole compound. The honest answer is that no single sole material wins in every situation. The goal is matching the right construction to the right application — and that is a conversation, not a catalog selection. When we work with OEM clients on product line development, we go through exactly this kind of SKU-by-SKU review before any mold investment is made.

Conclusion

PU injection molding offers a strong, consistent, and lightweight sole solution for most mid-to-high end safety shoe applications — but knowing when to use it, and when not to, is what separates a good product decision from a costly one. At Shoegan, we help clients make that call — backed by 15+ years of manufacturing experience and full OEM support from design to delivery. Reach us at [email protected] or WhatsApp +8613008988018.
